Low Pressure Nitrogen Purge Alarm A333-CRYO-R

$835.00

NFPA 99 mandates the continuous monitoring of purge gas during the brazing process, by means of an audible alarm, a pressure regulator and means to control flow.

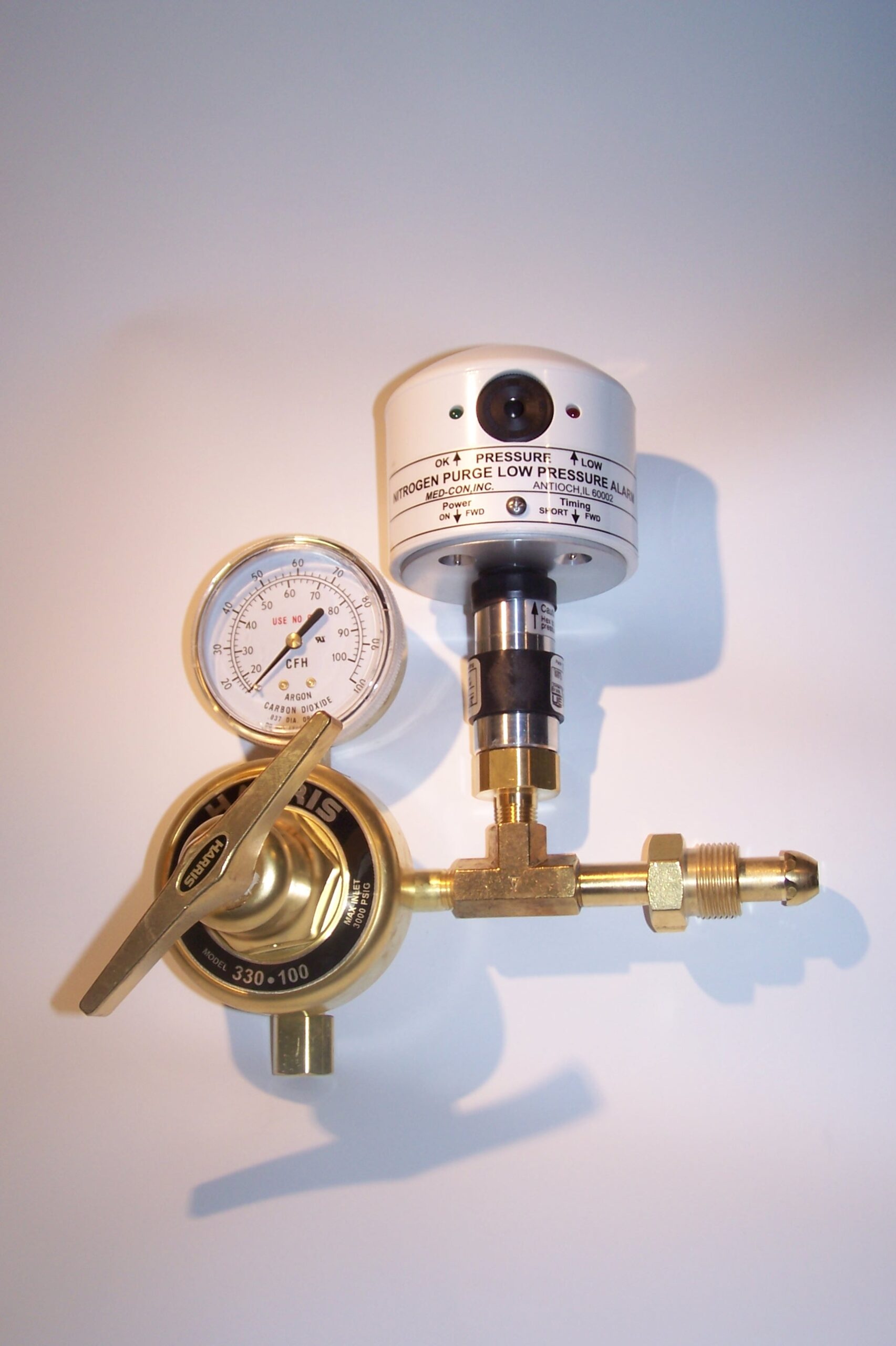

The A333-CRYO-R meets these requirements. The complete unit offers an alarm with both visual and audible signals, and a combination regulator/flowgauge.

IN STOCK







Description

The alarm is factory assembled of a rugged aluminum base and PVC enclosure. There is a Green blinking “OK” light when gas supply is adequate and a Red blinking “LOW” light when gas supply is low.  In addition, an audible alarm activates when purge gas is low.  The alarm operates on a 9-volt battery, included, which can give up to a year of operation, dependent upon usage.

The regulator/flowgauge is designed specifically to operate on liquid cylinders.  The 2-1/2″ gauge is a bourdon gauge.  The hose connection is 5/8″-18 Right Hand External “B”.   An adapter can be used to convert this regulator/flowgauge connection to 1/4″ NPT Male.  Sold separately on this site.

Additional information

Weight 6 lbs
Dimensions 12 × 11 × 6 in
